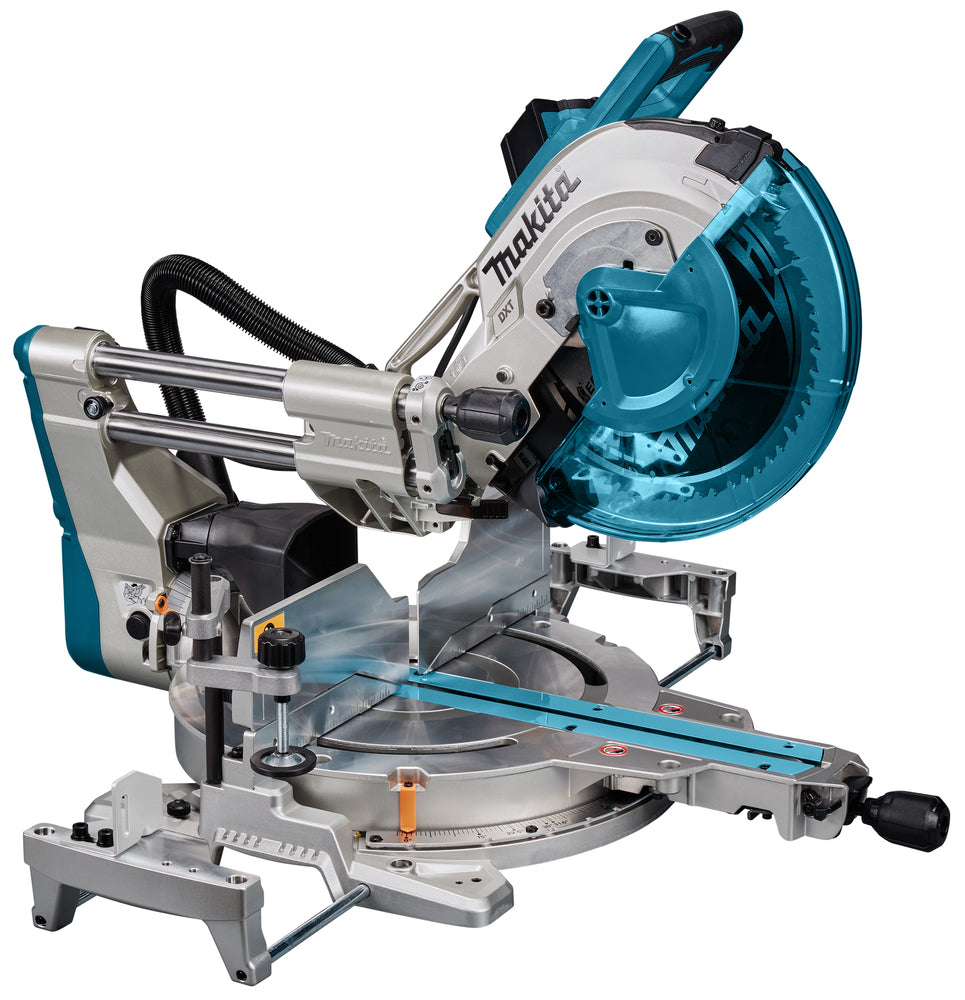

An accurate high-capacity mitre saw with a 1 800 W motor for professional use. The dual slide system reduces the need for space, enabling the machine to be placed by a wall. The bevel lock is located at the front of the saw. Equipped with an excellent dust removal function and a built-in laser that indicates line-of-cut.

Technical specifications

• Capacity 90°
  107 x 363 / 92 x 382 mm


• Continuous Input Power
  1800 W


• No load speed
  3200 min⁻¹


• Capacity 45°
  107 x 255 / 92 x 268 mm


• Capacity 45° left
  71 x 363 / 61 x 382 mm


• Bevel capacity right 45°
  54 x 363 / 44 x 382 mm


• Max. Bevel Range (Left)
  48 / 48 º


• Max. Mitre Range (Left)
  60 / 60 º


• Blade Diameter
  305 mm


• Bore Size (Arbor Diameter)
  30 mm


• Power Supply Cord
  2,5 m


• Sound Power Level (L_WA)
  100 dB(A)


• Sound Pressure Level (L_pA)
  91 dB(A)


• Noise Uncertainty (K Factor)
  3 dB(A)


• Vibration Level (3 axes)
  ≤ 2,5 m/s²


• Vibration Uncertainty (K Factor)
  1,5 m/s²


• Laser Class
  2M


• Weight Without Cable
  29,5 kg


• Product Dimensions (L x W x H):
  898 x 664 x 725 mm
