Belle 650AYGRY4 TDX 650A Twin Drum Roller Efficient & Durable Compaction for Construction Projects

Belle 650AYGRY4 TDX 650A Twin Drum Roller Efficient & Durable Compaction for Construction Projects

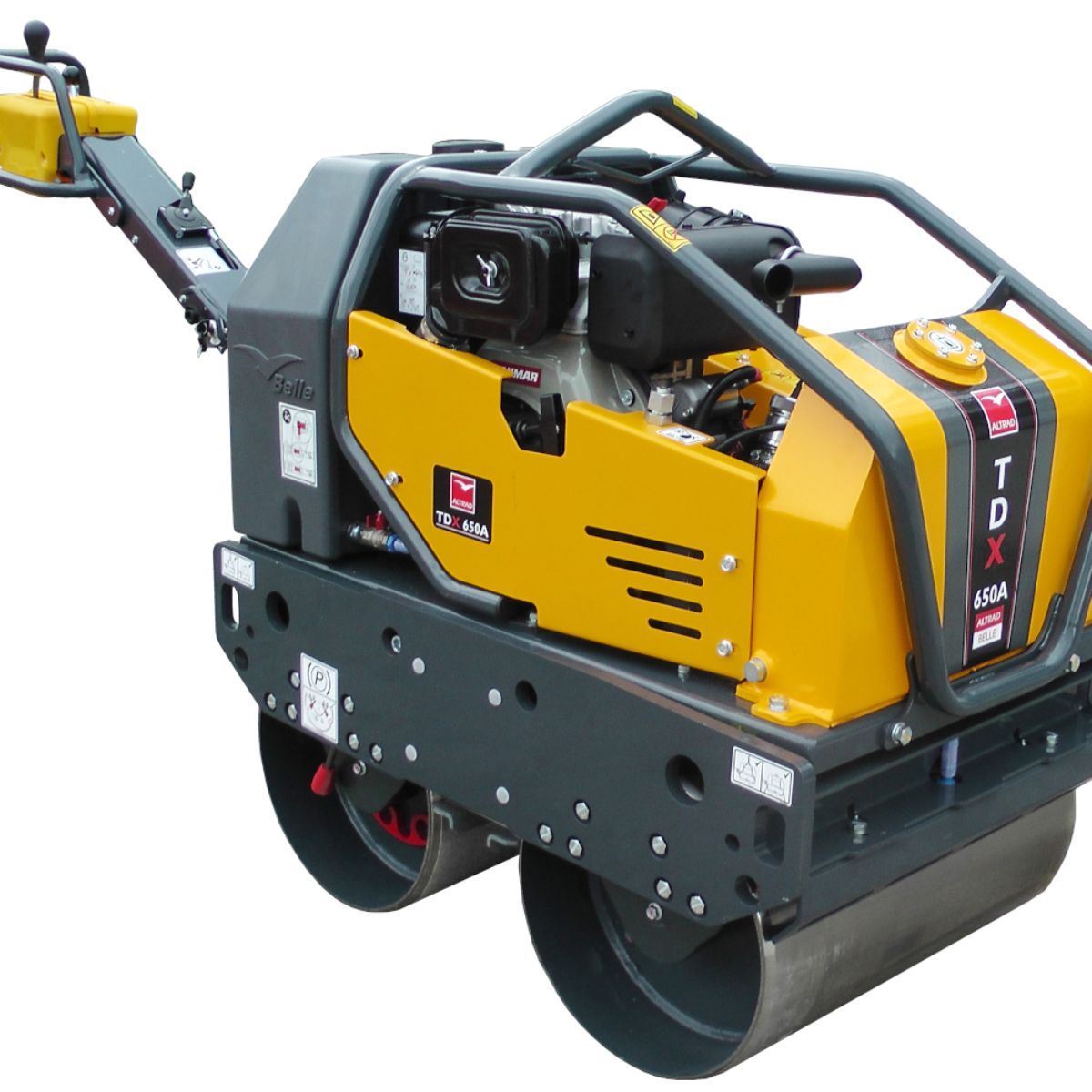

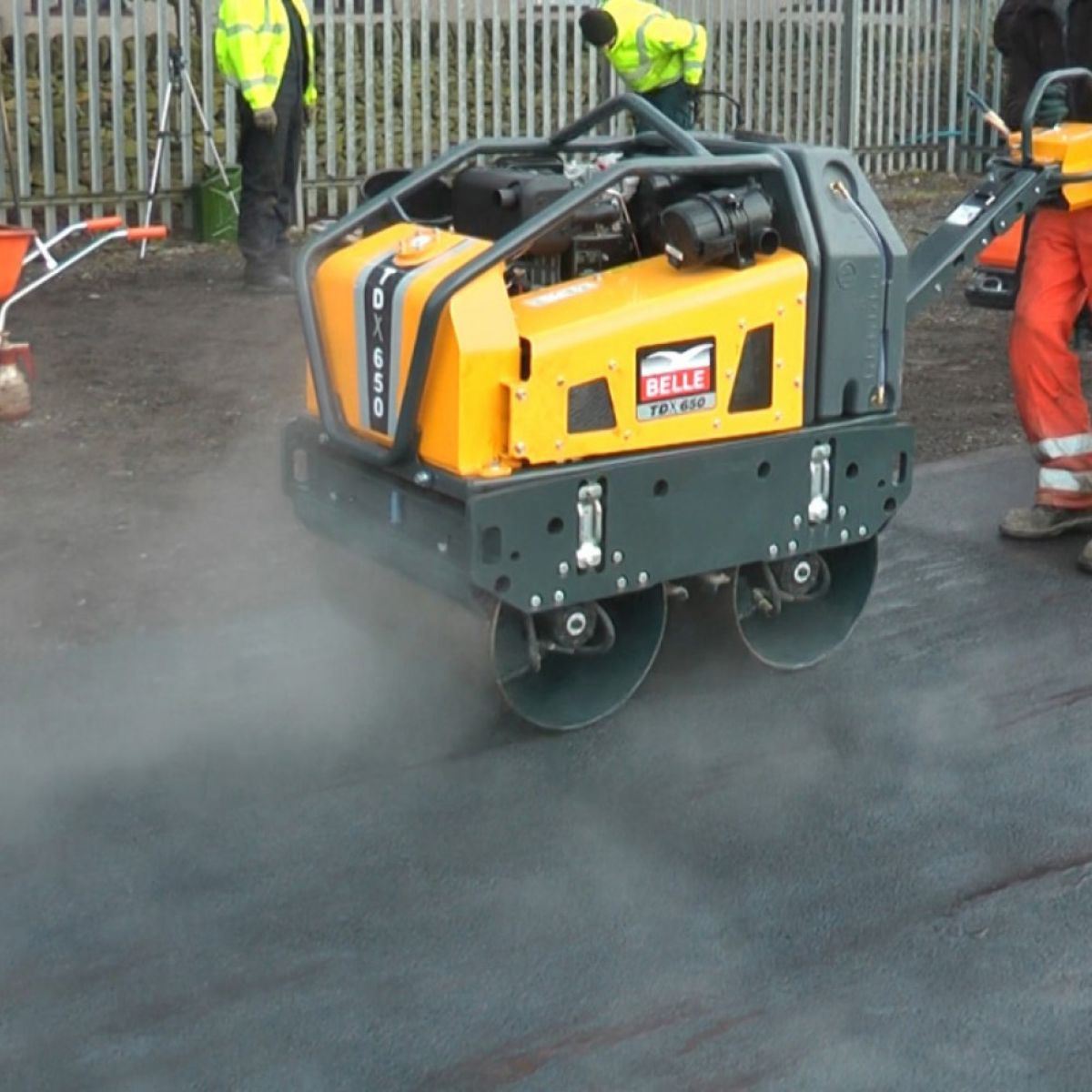

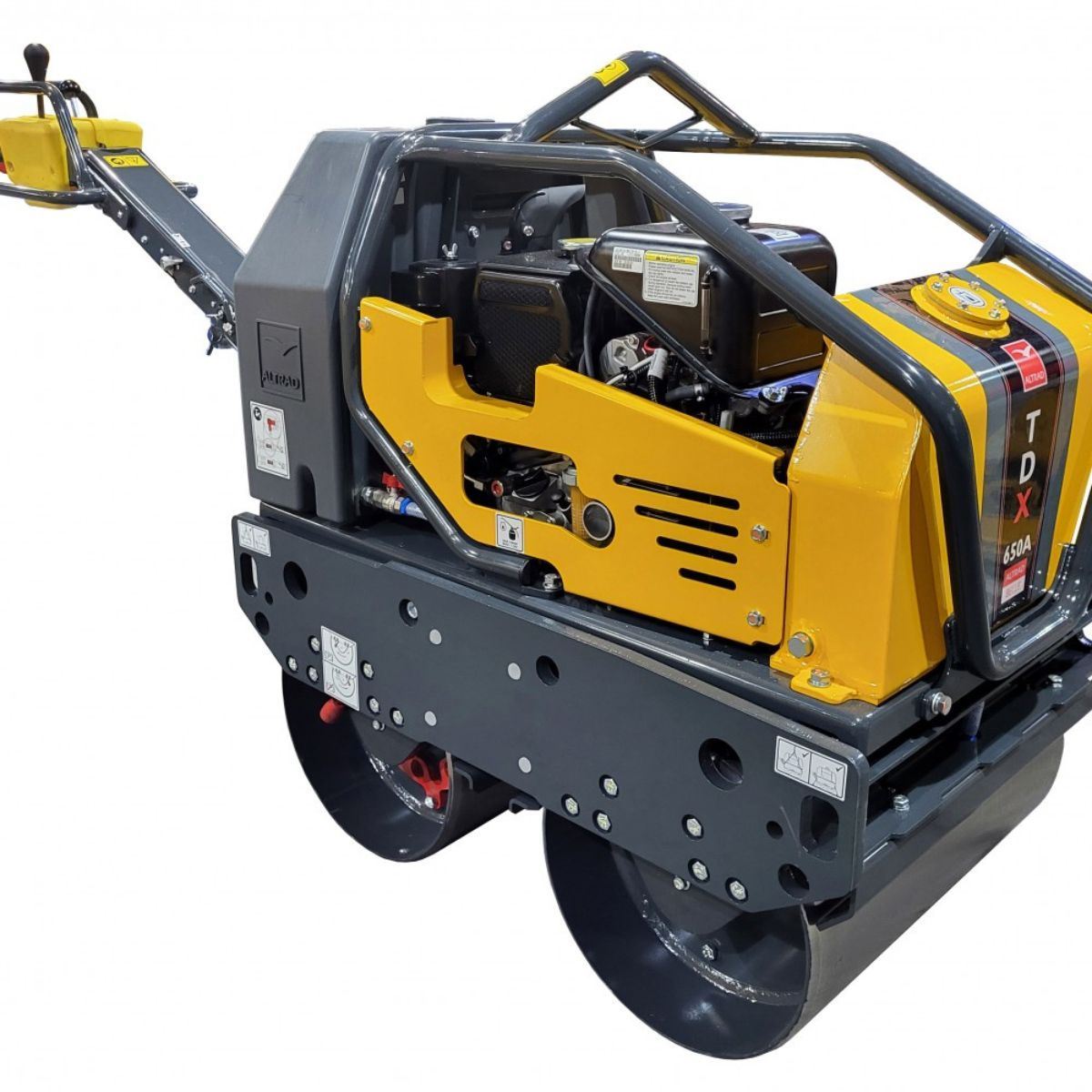

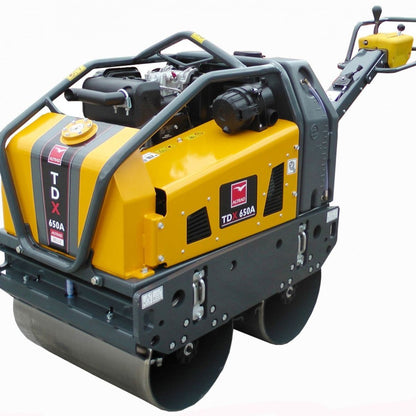

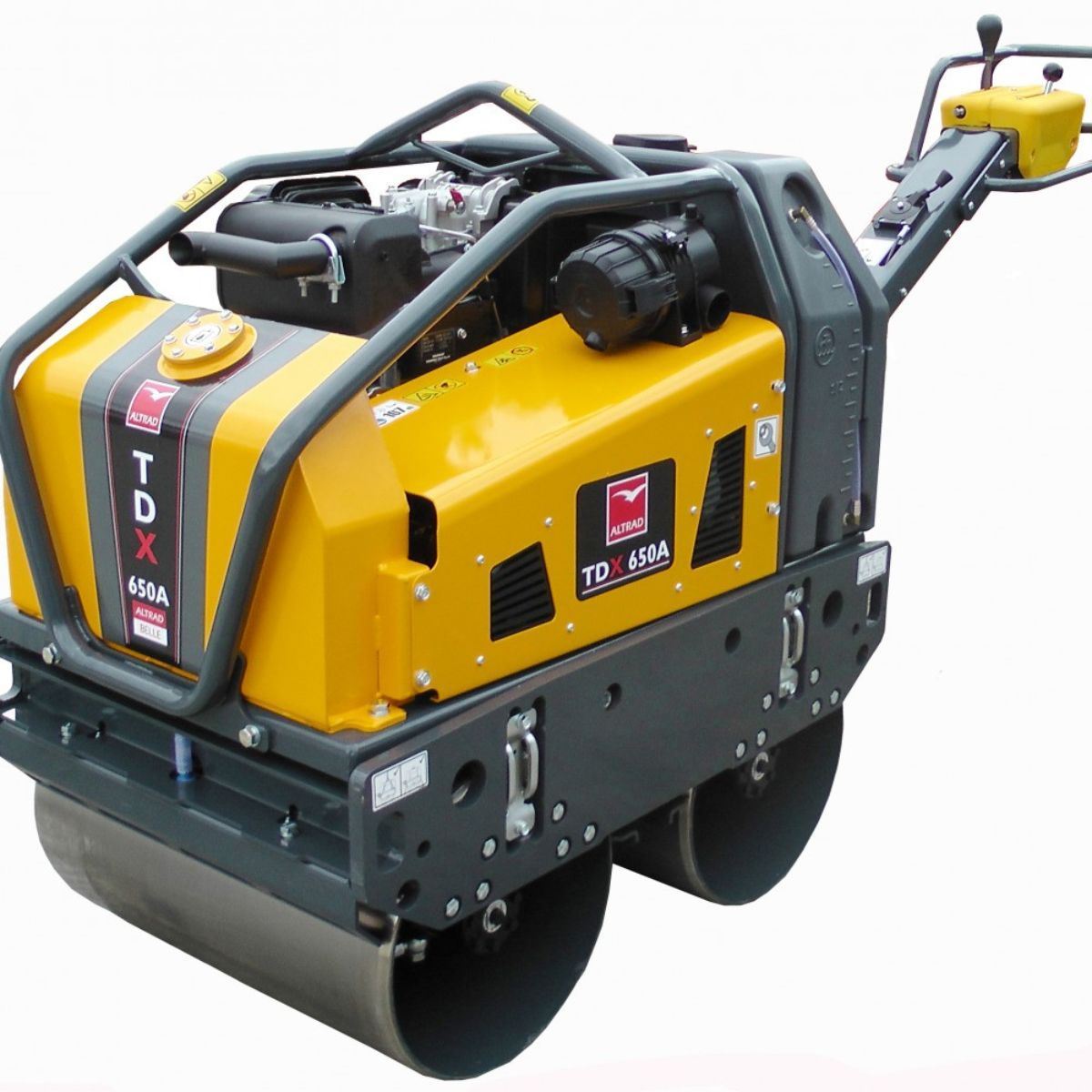

A Lightweight Twin-Drum Walk-Behind Roller with Hydrostatic drive system. The TDX 650A has a high compaction force but is also compact with well positioned controls making it easy to operate. Suitable for a wide range of soil and asphalt compaction applications.

Features:

Highly responsive, low-maintenance Hydrostatic drive system.
High-powered, reliable, 10hp Air-Cooled,Electric Start Yanmar Diesel engine or 6.9hp Water Cooled Electric Start Kubota EA330 engine.
16kN high compaction force for productivity
Recoil Start back-up on Yanmar engine.
High-quality Hydraulic System components.
65 litre Water Tank with external gauge.
Wall clearance on both sides with no overhang.
Self-cleaning, adjustable Scraper Bars.
18 litre Hydraulic Oil Tank.
Easy access, removable, front and rear anticorrosive water sprinkler system.

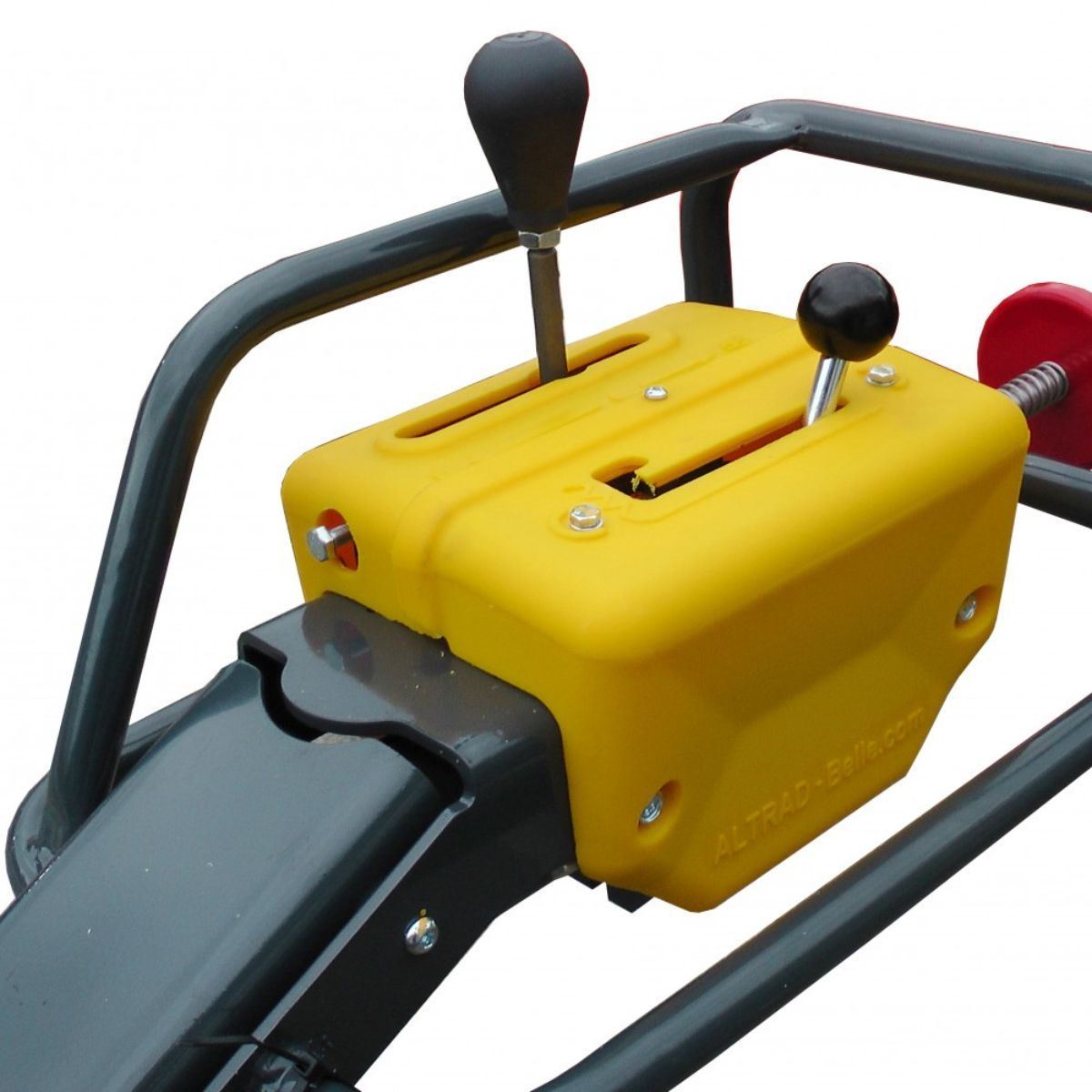

Foldable handle with locking mechanism.
Easy to service - Remote Oil Drain. Remote Oil Fill. Air Cleaner Access.
Drain on Water Tank to prevent frost damage.
Centrally located Lifting Eye and 4 x Strapping/ Lifting Points.
Key Switch protection.
2-layer factory powder coated components.
Customer colour options available.
Optional Hourmeter available.

Comes With:

1x Belle 650AYGRY4 TDX 650A Twin Drum Roller.

Product Specification:

Part no: 650AYGRY4
Barcode: 5031403430373
Brand: Belle
Engine Power ( Hp/kW ): Yanmar L100N Diesel 9.2 / 6.8
Starting System: Electric (with Recoil back-up)
Frequency (vpm): 3300
Forward Travel Speed (km/hr): > 3.9
Reverse Travel Speed (km/hr): > 2.1
Compaction Force (kN): 16
Water Tank Capacity (Ltr): 65
Oil Tank Capacity (Ltr): 16
Weight (kg): 675

**images for illustrative purposes only – please refer to description and specification for full details of product**
