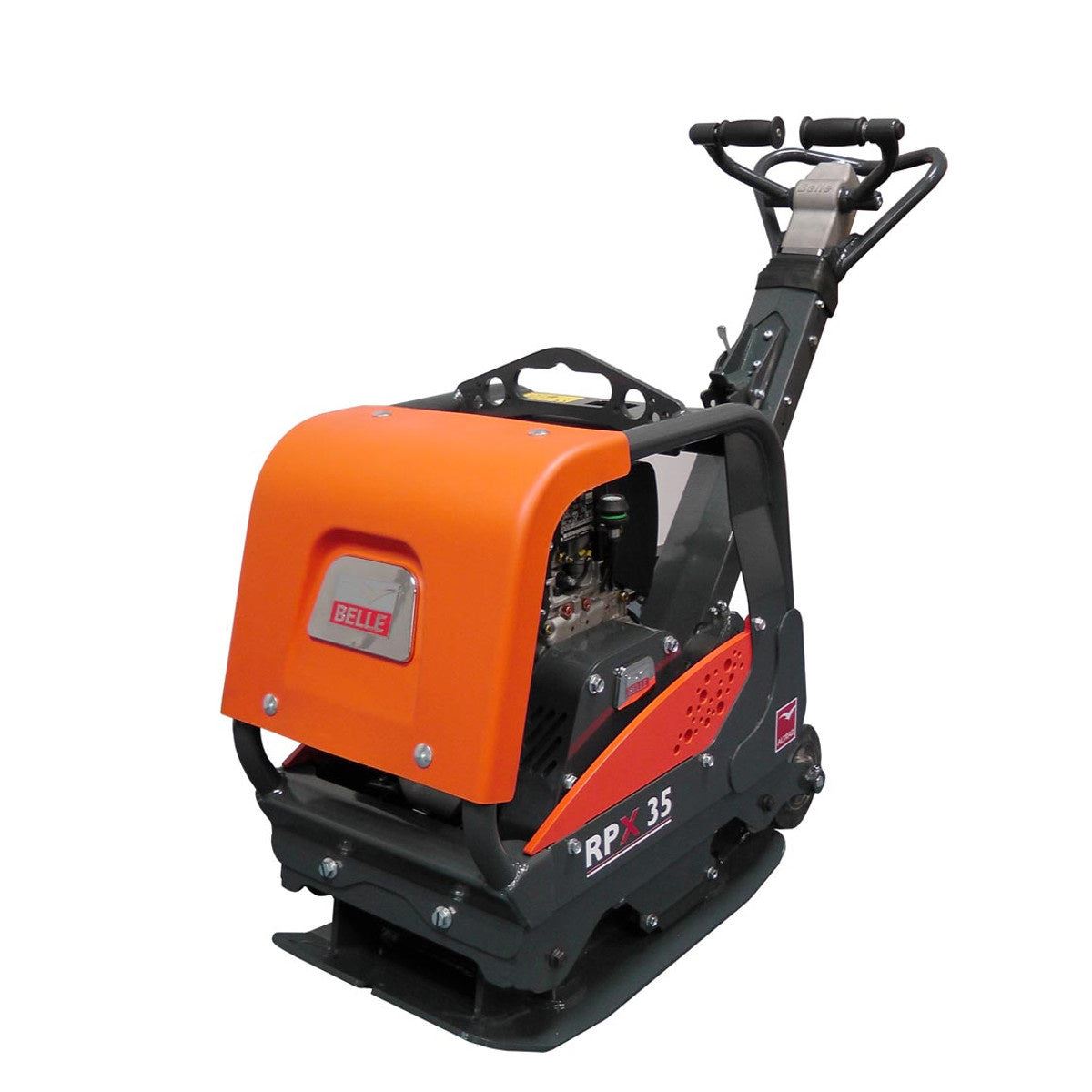

Belle 161.9.201 RPX 35/40DE Hatz Diesel Electric Start Reversible Plate Compactor Heavy-Duty for Construction

Belle 161.9.201 RPX 35/40DE Hatz Diesel Electric Start Reversible Plate Compactor Heavy-Duty for Construction

Heavy duty range of reversible plate compactors built to withstand the harshest site conditions. With improved base plate design for excellent gradability & increased travel speeds and a higher compaction force for shorter usage times and deeper compaction. Complete with integrated Wheel Kit for easy transportation these are the perfect solution for the rental market.

Features:

Robust design for long-life and use in the harshest site conditions.
Electric start with key ignition & LED warning lamps, eliminates need for operator training with manual starting.
Integrated Wheel Kit, ready for safe and easy transportation.
Control Handle & Additional Fixed Handle with strong locking:- - More positive handling & control. - Reduces shock loading on control handles. - Better fulcrum for pulling machine onto its wheels. - Safe for operator moving without relying on moving control handles. - No damage to the forward/reverse mechanism.
Angled baseplate for excellent gradability and travel speeds.
Low HAV handle, safe for operators to use for long periods.
High Compaction force for fast work and deep compaction.
Handle mounted throttle, perfect for the operator
Compact, high performance, sealed for life Lithium Ion battery. Dry battery = no liquid acid
Specifically designed for hire and rental markets.
Paving Pad option available.

Comes With:

1x Belle 161.9.201 RPX 35/40DE 1B20 Hatz Diesel E/S Reversible Plate Compactor.

Product Specification:

Part no: 161.9.201
Barcode: 5031403035042
Brand: Belle
Engine/Motor Power : 4.2 - 3.1 (Hp) - (kW)
Plate Size (W x L) : 400 x 700 (mm)
Static Pressure : 1449 (Kg/m2)
Max Gradient : 20 (°)
Centrifugal Force : 35 (kN)
Frequency : 81 (Hz)
Travel Speed : 27 (m/min)
Vibration Level : 2.4 (m/sec2)
Weight (Kg): 189

**images for illustrative purposes only – please refer to description and specification for full details of product**
